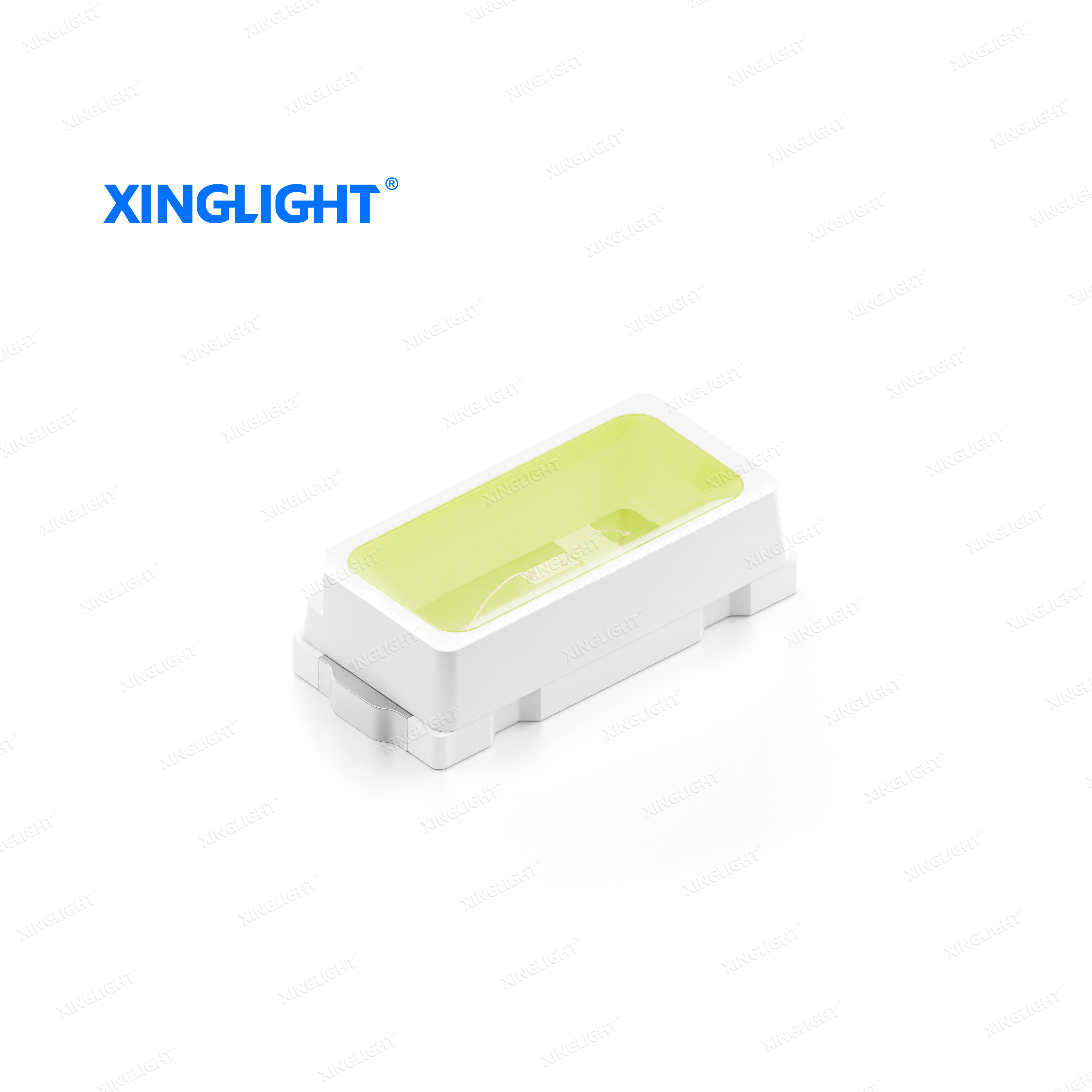

XL-3014BGWC-02 is a 0.2 W ice blue LED packaged in XINGLIGHT3014: forward voltage 2.8-3.4 V, test current 60 mA, luminous flux 8-13 lm, 110 ° emission angle, -40 ℃~+85 ℃ operation, suitable for ice blue light source scenes such as light strips, advertising boards, LCD backlighting, and decorative lighting.
Outline Dimensions (L / w / h): 3.0x1.4 x 0. 8mm
Luminous color and colloid: Ice blue light/ light yellow colloid
Environmental protection products Complied With ROHS Directive
Moisture sensitivity level（MSL）: 3 levels
EIA standard packaging
Suitable for SMT automatic production
Suitable for infrared reflow soldering process
Indoor lighting: lamp tubes, light strips
Commercial lighting display: advertising board
LCD backlight
Decorative lighting: metal plate hard light strip
Auxiliary lighting inside the car
Other lighting and display categories
