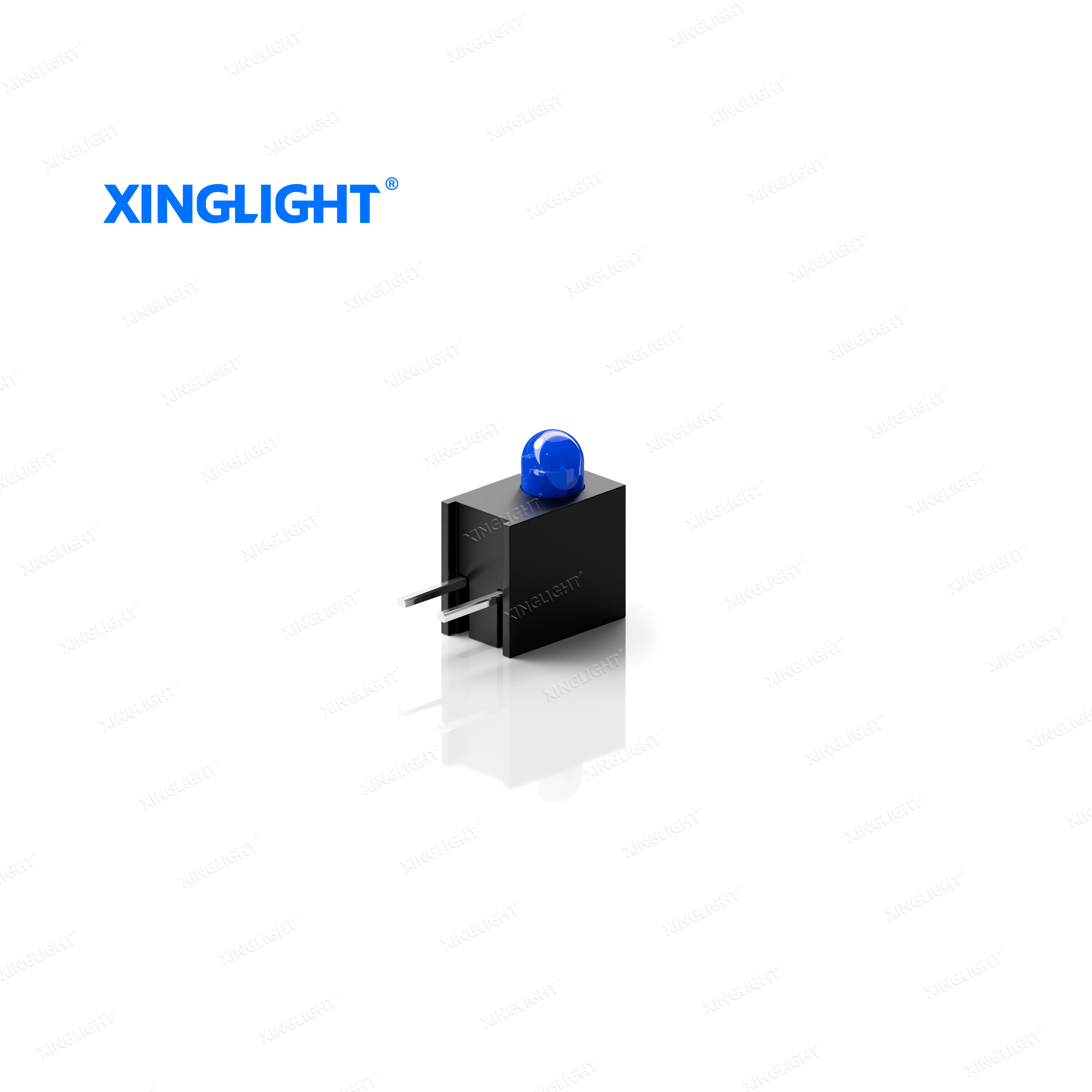

The XL-DZ304UBD/1 F3MM blue hair single-hole lamp holder LED is designed for F3MM specification single-hole lamp holders, with blue resin, primarily emitting blue light, and dimensions of 7.5×6.5×4.5mm. It meets ROHS standards, MSL2 level, uses EIA standard packaging, has a long service life, low maintenance cost, high energy efficiency, and quick start. Operating temperature range is -40℃ to 85℃, storage temperature range is -40℃ to 85℃, forward current 20mA, voltage 2.8-3.6V, luminous intensity 900-1500mcd, main wavelength 460-470nm, and beam angle 45°.Suitable for multiple scenarios including IoT, medical devices, converters, storage servers, communication equipment, status indicators, and electronic testing instruments.
Appearance dimension : 7.5*6.5*4.5mm
Luminous color and colloid: Blue Light /Blue colloid
Environmental protection products meet ROHS requirements
Moisture sensitivity level（MSL） : 2 levels
EIA standard packaging
Long operating life
Reduced maintenance costs
High energy efficiency, fast startup
Internet of Things
medical treatment
converter
Storage servers and communication
Status indicator
Electronic testing instruments
