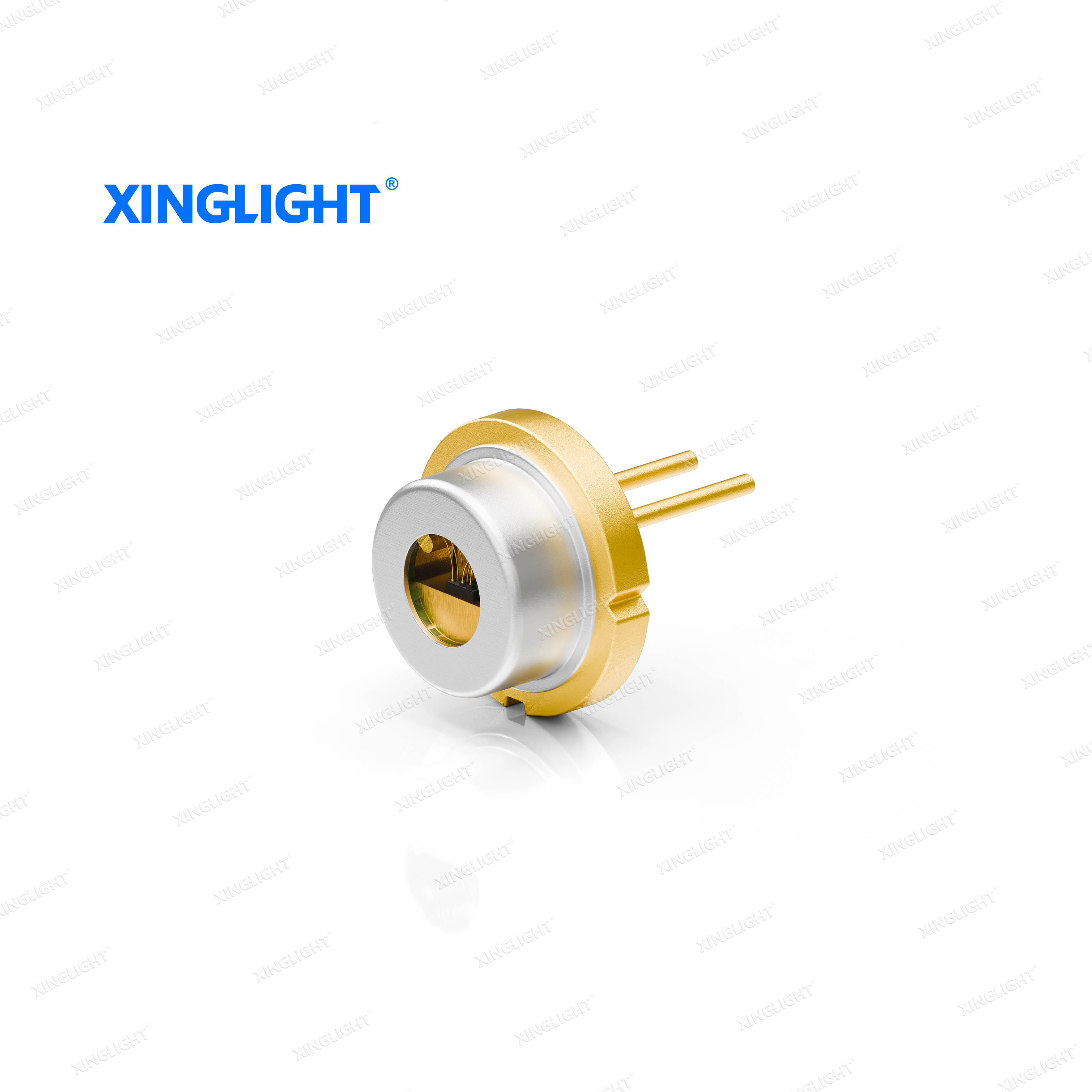

The XL-PLPT9 455LB-6W semiconductor laser is an ultra-high-power 455nm blue single-mode laser diode. It uses a metal TO-90 coaxial package, with a typical optical output power (continuous wave) of 6W (TC=25℃), a typical threshold current of 0.35A, operating current ≤3.5A, and operating voltage ≤4.8V. This device features a high modulation bandwidth and low beam divergence (fast axis 46°, slow axis 10°). It's currently the most powerful laser diode in its series and is ideal for applications requiring high-power blue light, such as LiDAR, industrial processing, medical biophotonics, research, and defense.
Optical Output Power: 6W in continuous wave mode (TC=25℃)
Typical Emission Wavelength: 450nm (blue band, as labeled on the homepage)
Operating Mode: Supports continuous wave (CW) and pulsed mode, highly efficient radiation source
Laser Type: Single-mode semiconductor laser
Modulation Performance: High modulation bandwidth
Package Type: TO-90 package,
Environmental and Reliability: ROHS compliant, MSL level 2
Key Electrical Parameters (Ta=25℃):
Threshold Current (Ith): Typical 0.35A, Maximum 0.45A
Operating Current (Iop): Typical 1.3A (for Po=6W), Maximum 3.3A; Recommended operation ≤2.8A
Operating Voltage (Vop): Typical 4.25V, Maximum 4.8V (for Po=6W)
Center Wavelength Range: 447~462nm (typical 455nm, slightly different from the 450nm labeled on the homepage)
Beam Divergence (Fast Axis/Slow Axis, 50% peak): Fast Axis 46°~52° (typical not given), Slow Axis 10°~15° (typical not given)
Beam Displacement Angle: ±3° (Fast Axis/Slow Axis)
Absolute Maximum Ratings:
Optical Output Power (Po): 6.0W
Operating Current (Iop): 3.5A (absolute maximum)
Reverse Voltage (VR): 2V
Operating Temperature (TOP): -20℃~60℃
Storage Temperature (Tstg): -40℃~85℃
Soldering Conditions: Wave soldering 240℃ ≤6s, Manual soldering 300℃ ≤3s
LiDAR (LiDAR/ToF) and Distance Measurement (high power is good for long-range detection)
Industrial Inspection and Safety Sensors
Medical and Biophotonics (like high-power photodynamic therapy, surgical lighting)
Military and Defense (like laser designation, ranging, countermeasures, illumination)
Scientific Research and Quantum Technology
Consumer Electronics and Security Systems (like high-brightness laser projection, displays)
