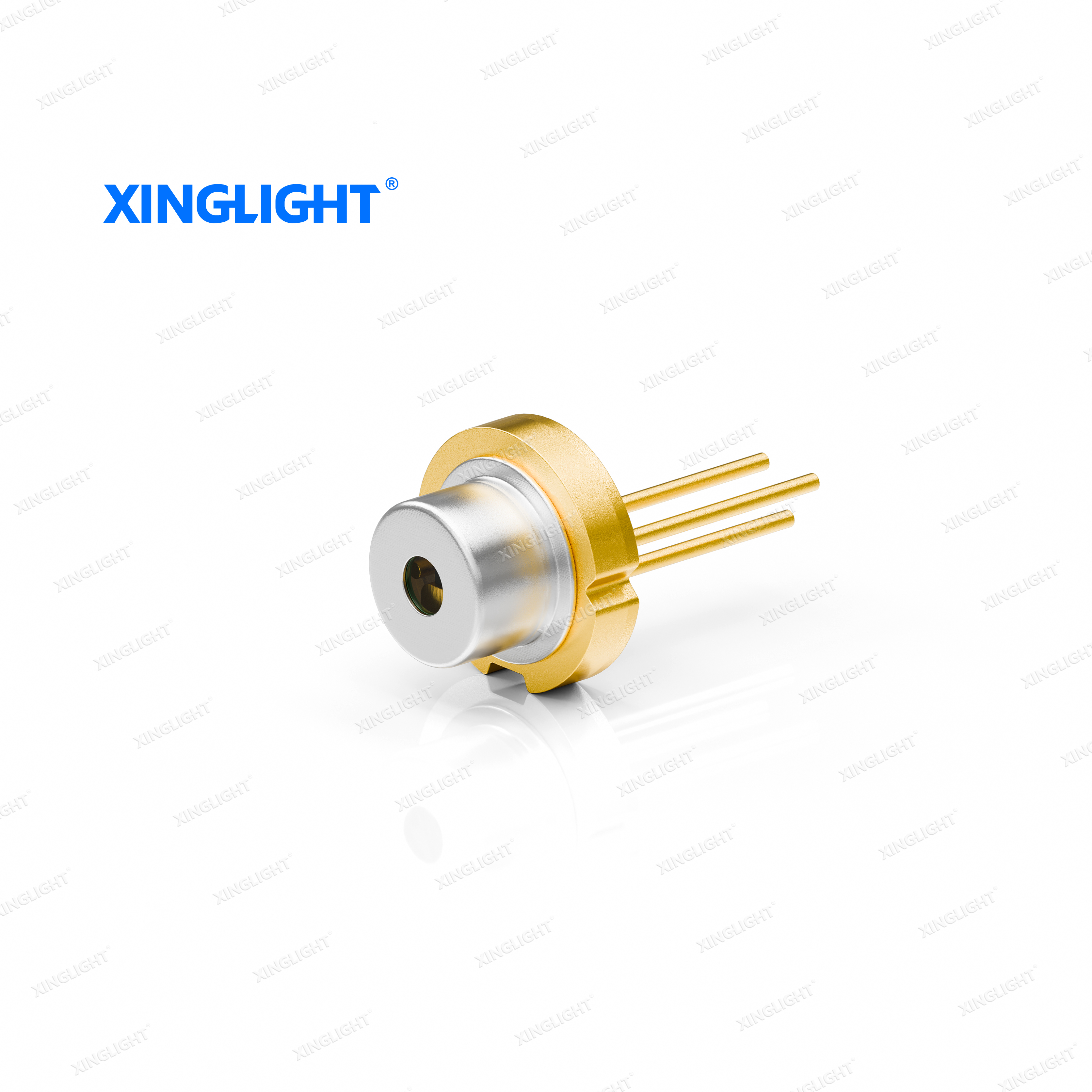

The XL-PLPT5 520B-35mW is a single-mode semiconductor laser that comes in a TO56 package with a built-in photodiode. It has a typical emission wavelength of 520nm and a continuous wave (CW) output power of 30mW (at TC=25°C). This device supports both continuous wave and pulsed modes and features a high modulation bandwidth, making it suitable for precision measurement, sensing, and display applications that require relatively high power green laser (520nm). The product meets ROHS environmental standards and has a moisture sensitivity level of MSL 2.
Optical Output Power: 30mW in continuous wave mode (TC=25℃)
Typical Emission Wavelength: 520nm (green band)
Operating Mode: Supports continuous wave (CW) and pulsed mode, highly efficient radiation source
Laser Type: Single-mode semiconductor laser
Modulation Performance: High modulation bandwidth
Package Type: TO56 package with built-in photodiode (PD), includes monitor current output (typical Im 0.30mA, Vrd=5V)
Environment & Reliability: ROHS compliant, MSL level 2
Key Electrical Parameters (Ta=25℃):
Threshold Current (Ith): typical 25mA, max 45mA
Operating Current (Iop): typical 70mA (Po=30mW), max 90mA
Operating Voltage (Vop): typical 6.5V, max 7.0V (Po=30mW)
Central Wavelength Range: 515~530nm (typical 520nm)
Beam Divergence Angle (Fast Axis/Slow Axis, 50% peak): typical 19°/5° (Fast Axis 19°~22°, Slow Axis 5°~7°)
Monitor Current: 0.05~0.55mA (typical 0.30mA)
Absolute Maximum Ratings: Reverse Voltage (LD≤2V, PD≤30V); Operating Temperature -20℃~60℃; Storage Temperature -40℃~85℃; Soldering Conditions (wave solder ≤240℃ 6s, manual solder ≤300℃ 3s)
LiDAR (LiDAR/ToF) and ranging
Industrial inspection and safety sensing
Medical and biophotonics (like fluorescence excitation, photodynamic therapy)
Military and defense
Scientific research and quantum technology
Consumer electronics and security systems (like laser projection, scanning, security monitoring)
