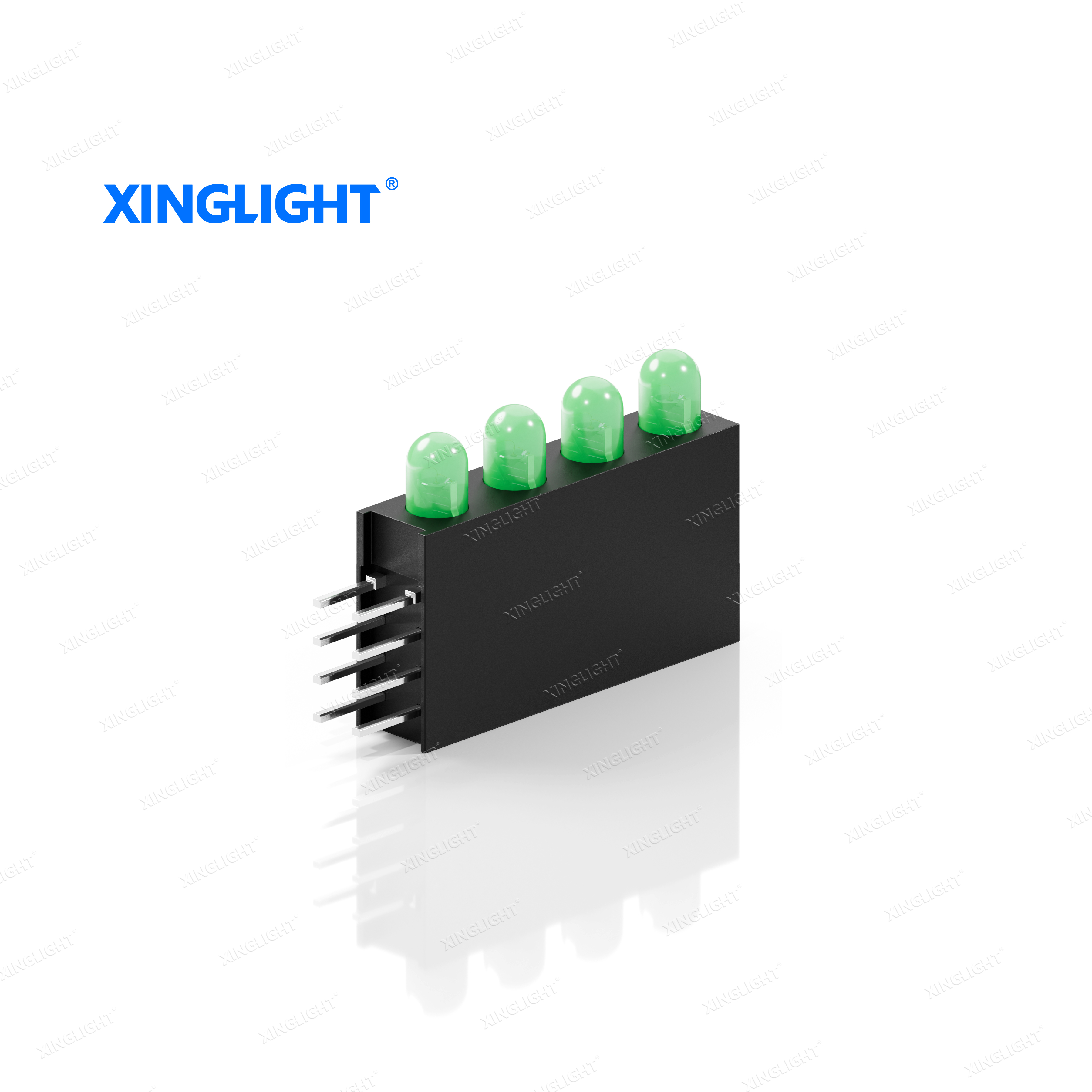

XL-DZ304UGD/4 F3MM green bright green four-hole lamp holder LED is designed for F3MM specification four-hole lamp holder, with green colloid, mainly emitting green light, with dimensions of 20.3×10.7×4.5mm. Compliant with ROHS standard, MSL2 grade, packaged according to EIA standard, long service life, low maintenance cost, high energy efficiency, and fast start-up. Operating temperature range -40℃~85℃, storage temperature range -40℃~85℃, forward current per unit 20mA (total current for four holes 80mA), voltage 2.6-3.4V, luminous intensity 3000mcd, dominant wavelength 515-530nm, light emission angle 45°.
Appearance dimension : 20.3*10.7*4.5mm
Luminous color and colloid: green Light /green colloid
Environmental protection products meet ROHS requirements
Moisture sensitivity level（MSL） : 2 levels
EIA standard packaging
Long operating life
Reduced maintenance costs
High energy efficiency, fast startup
Internet of Things
medical treatment
converter
Storage servers and communication
Status indicator
Electronic testing instruments
