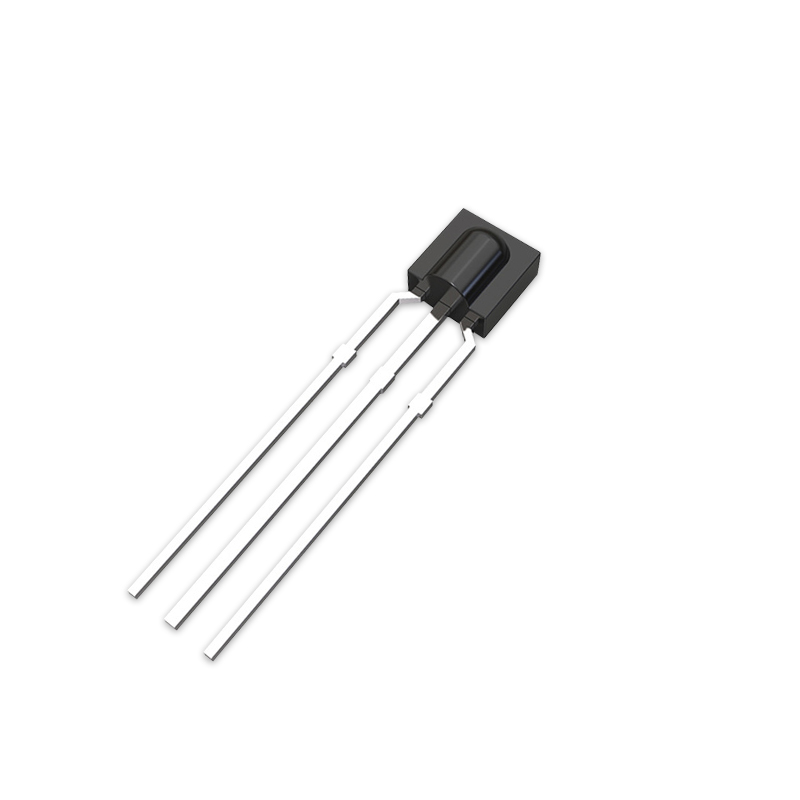

XL-IRM0038A is an infrared receiver head, integrated with a high-speed and high-sensitivity PIN photodiode and a low-power, high-gain preamplifier IC. It adopts epoxy resin plastic encapsulated semi-spherical packaging and dual internal/external shielding anti-interference design, certified by REACH and RoHS. With dimensions of 5.0×5.0×3.5×22mm, it has an operating voltage of 2.7-5.5V, operating current of 0.3-0.5mA, reception distance of 6-8M at 0° (5-6M at ±35°), carrier frequency of 37.9KHZ, and outputs TTL/CMOS-compatible level (active low). Operating temperature range: -20~+85℃ (storage: -40~+125℃), soldering requirements: wave soldering 240℃≤6s or manual soldering 300℃≤3s.
Ideal for household appliances, multimedia equipment, industrial control, remote control toys, etc.
Small volume epoxy plastic packaging
Appearance dimension（length * width * height* foot length）：5.0*5.0*3.5*22mm
Wide working voltage, 2.7-5.5V
Low power consumption; Wide angle and long-distance reception
withstand environmental interference
Output matching TTL, CMOS level, low level effective
Household appliances (air conditioning, fans, heaters, humidifiers)
Multimedia audiovisual equipment (TV, DVD, set-top box, car mounted mobile DVD, hard drive player
Computers and peripheral equipment, induction sanitary ware
Industrial Control (Instrumentation, Industrial Automation
Remote control toys, communication equipment, photography equipment, office machines
Financial Electronics, Automotive Electronics, Lighting
