XL-C4040UWC
Z6·尊龙凯时「中国」官方网站
XL-C4040UWC

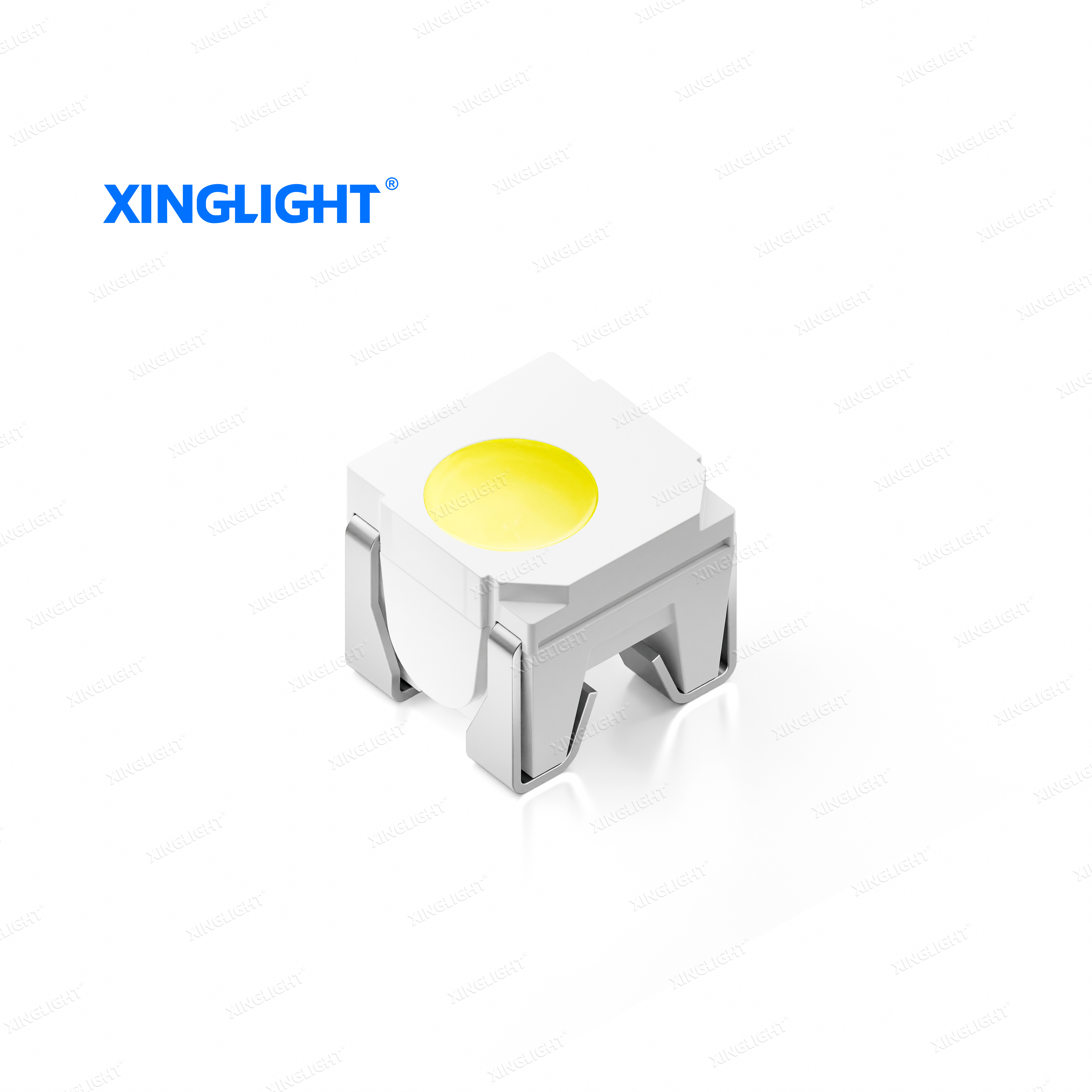

?XL-C4040UWC is a 4040-sized white light side-emitting SMD LED, featuring yellow epoxy encapsulation and EIA standard packaging, with an outline dimension of 4.0×3.95×3.55mm (L×W×H). It has advantages including high anti-static performance (3000V), high brightness (2200-2600mcd), wide viewing angle (120°), excellent color rendering (Ra≥70), compatibility with SMT automatic production and infrared reflow soldering. It meets ROHS environmental requirements and has a Moisture Sensitivity Level (MSL) of Grade 3.
The operating temperature range is -40℃~+85℃, and the storage temperature range is -40℃~+85℃. The forward operating current is 20mA, and the peak pulse current is 80mA (1/10 duty cycle, 0.1ms pulse width). The forward voltage is 2.8-3.4V, the color temperature is 5500-6000K (white light).

It is suitable for various scenarios such as automotive exterior/interior lighting, outdoor lighting fixtures, step lights/exit passage lights/sign lights, major appliance (refrigerator, washing machine, clothes dryer) lighting, and decorative & entertainment lighting.
Z6·尊龙凯时「中国」官方网站
PDF EDA Model
Product Characteristics

Out line Dimensions (L / w / h)： 4.0*3.95*3.55mm


Luminous color and colloid: Withe light/ Yellow colloid


Environmental protection products Complied With ROHS Directive


Moisture sensitivity level（MSL）： 3 levels


EIA standard packaging


Suitable for SMT automatic production


Suitable for infrared reflow soldering process

Product Application

Car exterior lighting


Automotive interior lighting


Outdoor lighting fixtures


step lights, exit passage lights and sign lights


Major appliance: refrigerator lighting, washing machine, Clothes dryer


Decoration and entertainment lighting
