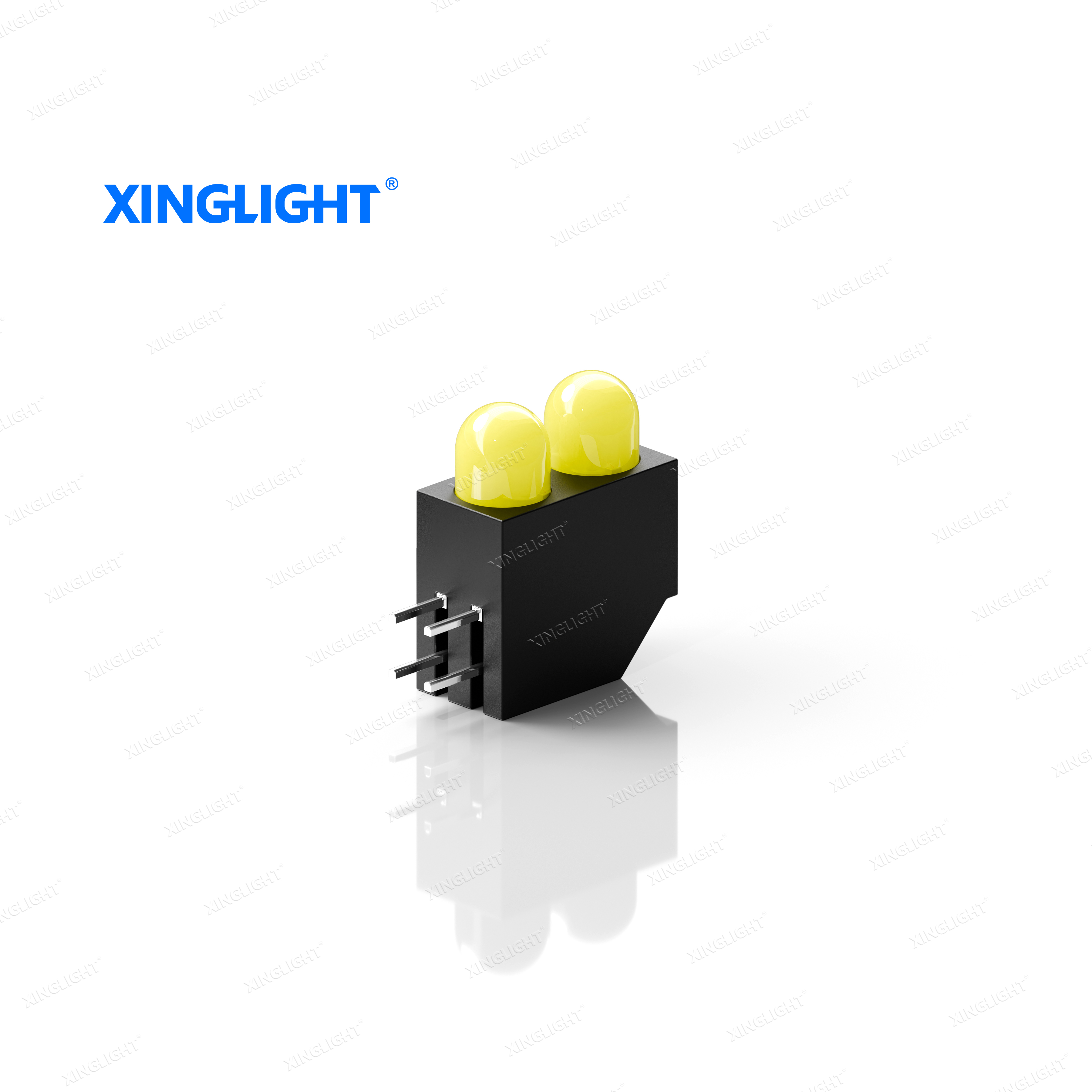

XL-DZ504UYD/2 F5MM yellow double-hole lamp holder LED is designed as a F5MM standard double-hole lamp holder, with yellow colloid, primarily emitting yellow light, dimensions 12.5×6.2×10.8mm. It complies with ROHS standards, MSL2 level, uses EIA standard packaging, has a long service life, low maintenance costs, high energy efficiency, and quick start. Operating temperature range -40℃~85℃, storage temperature range -40℃~85℃, single forward current 20mA (total current for double holes 40mA), voltage 1.8-2.4V, luminous intensity 300-1500mcd, peak wavelength 585-595nm, viewing angle 45°.
Suitable for the Internet of Things, medical devices, converters, storage servers and communication equipment, status indicators, electronic testing instruments, and other multiple scenarios.
Appearance dimension:12.5*6.2*10.8 mm
Luminous color and colloid: Yellow Light /Yellow colloid
Environmental protection products meet ROHS requirements
Moisture sensitivity level（MSL） : 2levels
EIA standard packaging
Long operating life
Reduced maintenance costs
High energy efficiency, fast startup
Internet of Things
medical treatment
converter
Storage servers and communication
Status indicator
Electronic testing instruments
