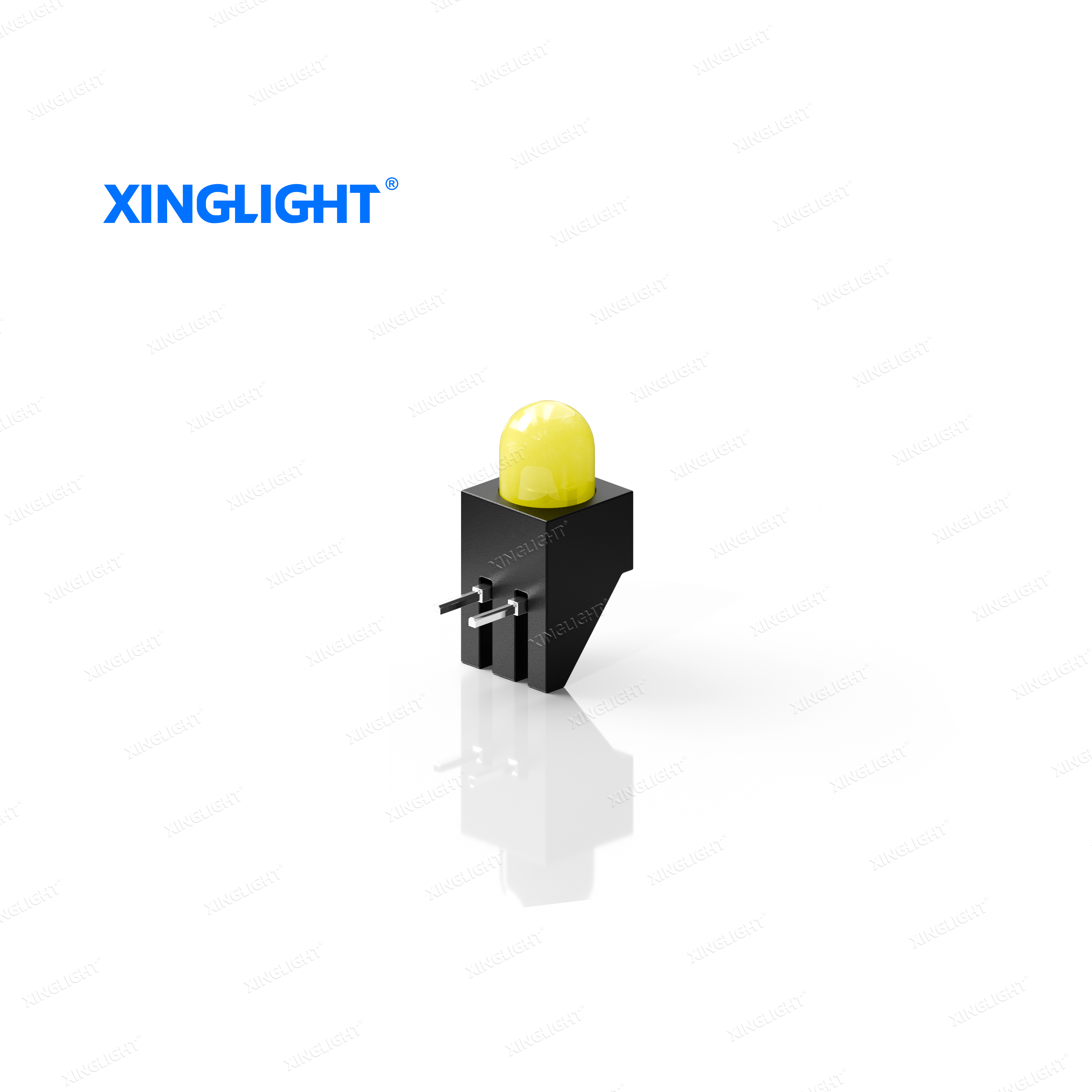

XL-DZ504UYD/1 F5MM Yellow Single-Hole Lamp Holder LED is designed for the F5MM specification single-hole lamp holder, with yellow colloid, focusing on yellow light, with dimensions of 6.2×6.2×14mm. It complies with ROHS standards, MSL2 level, uses EIA standard packaging, has a long service life, low maintenance cost, high energy efficiency, and fast start-up. Operating temperature range -40℃~85℃, storage temperature range -40℃~85℃, forward current 20mA, voltage 1.8-2.4V, luminous intensity 300-1500mcd, main wavelength 585-595nm, beam angle 45°.
Suitable for various scenarios such as the Internet of Things, medical devices, converters, storage servers and communication equipment, status indicators, and electronic test instruments.
Appearance dimension : 6.2*6.2*14mm
Luminous color and colloid: Yellow Light /Yellow colloid
Environmental protection products meet ROHS requirements
Moisture sensitivity level（MSL） : 2 levels
EIA standard packaging
Long operating life
Reduced maintenance costs
High energy efficiency, fast startup
Internet of Things
medical treatment
converter
Storage servers and communication
Status indicator
Electronic testing instruments
