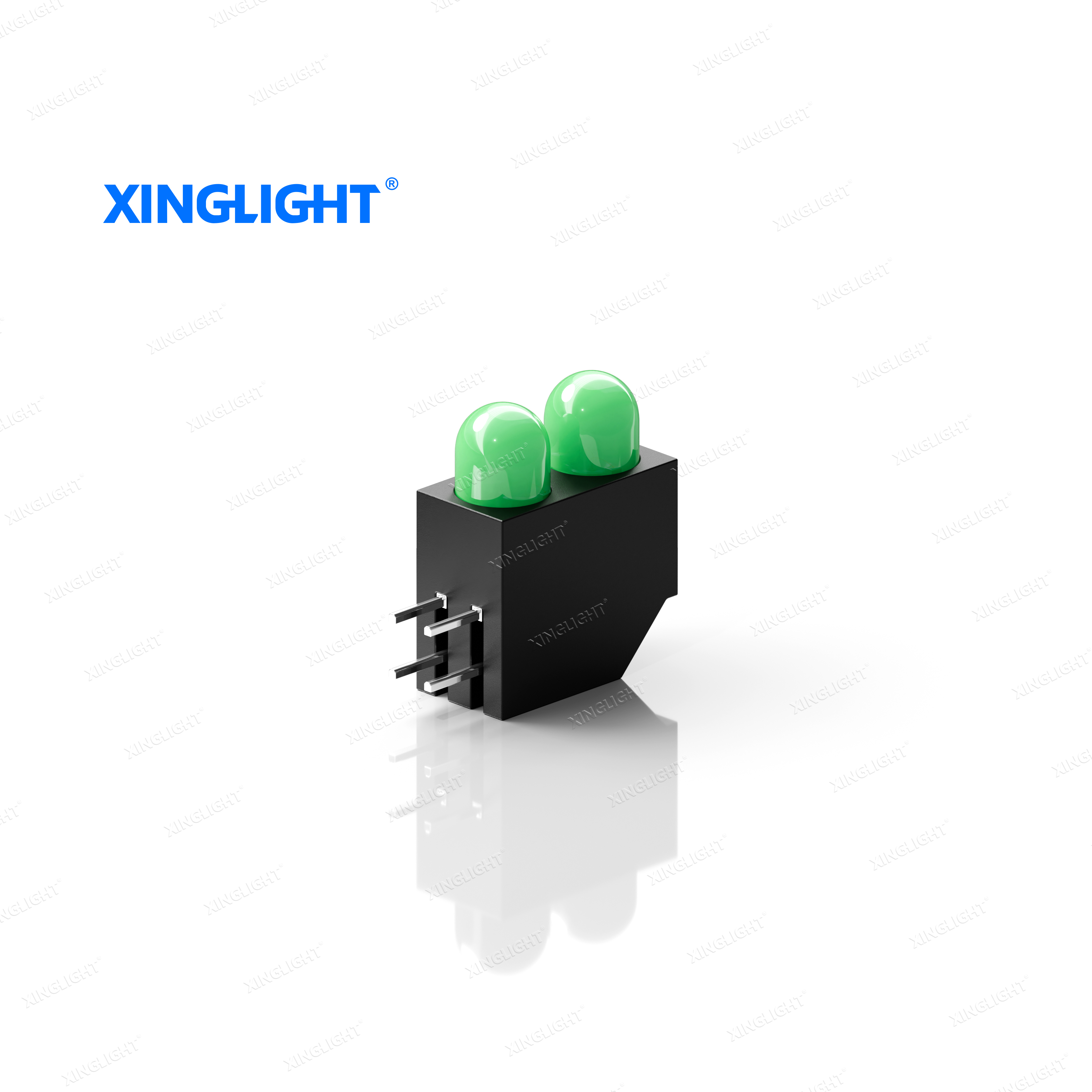

XL-DZ504SYGD/2 F5MM green double-hole lamp holder LED is designed for F5MM specification double-hole lamp holders, with green colloid, primarily green light, and dimensions of 12.5×6.2×10.8mm. It complies with ROHS standards, MSL2 level, uses EIA standard packaging, has a long service life, low maintenance costs, high energy efficiency, and quick start. Operating temperature range is -40℃~85℃, storage temperature range is -40℃~85℃, single forward current 20mA (total current 40mA for double holes), voltage 1.8-2.4V, luminous intensity 100-300mcd, main wavelength 560-575nm, and viewing angle 45°. Suitable for the Internet of Things, medical devices, converters, storage servers and communication equipment, status indicators, electronic testing instruments, and other multiple scenarios.
Appearance dimension :12.5*6.2*10.8mm
Luminous color and colloid: Green Light /Green colloid
Environmental protection products meet ROHS requirements
Moisture sensitivity level（MSL） : 2 levels
EIA standard packaging
Long operating life
Reduced maintenance costs
High energy efficiency, fast startup
Internet of Things
medical treatment
converter
Storage servers and communication
Status indicator
Electronic testing instruments
